| Item | Content |
|---|---|
| Product No. | RP01A-RK3588S |
| Version | V1.0 |
| Release Date | 2026-01-28 |
| Effective Date | 2026-01-28 |
| Document Status | Under Revision |
| Prepared by | Wang Zhihai |
| Reviewed by | |
| Confidentiality Level | Public |
| Version | Release Date | Update Record |
|---|---|---|
| V1.0 | 2026-01-28 | First release |
1. Product Introduction
RK3588S is a cost-effective flagship chip launched by Rockchip, adopting 8nm manufacturing process and equipped with 8-core CPU (4×Cortex-A76 + 4×Cortex-A55). It supports 8K@60Hz video output and decoding, and integrates 6.0TOPS NPU, which meets edge computing demands of most terminal devices.
RP01A-RK3588S is developed mainly for edge computing and AI scenarios with abundant onboard interfaces. It supports dual MIPI camera inputs, 6-channel MIC and 2-channel AEC inputs, enabling video object recognition and voice recognition, and providing efficient solutions for intelligent devices.
2. Specifications
Product Specifications
| Item | Parameter |
|---|---|
| CPU | RK3588S Octa-core, 4×Cortex-A76 + 4×Cortex-A55 Max frequency up to 2.4GHz |
| GPU | Mali-G610, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 Built-in high-performance 2D hardware accelerator |
| DDR | LPDDR5X, optional 4G/8G/16G/32G |
| NPU | 6.0 TOPS |
| System | Android / Debian / Buildroot / Ubuntu |
| Onboard Storage | Support eMMC5.1, SDIO3.0 Optional 16GB/32GB/64GB/128GB |
| Display Output | 1×HDMI 2.1, max 8K@60Hz, support HDCP2.3 1×Type-C (2Lane), max 4K@60Hz, DP1.4a & HDCP2.3 2×4Lane MIPI DSI |
| Camera | 2×4Lane MIPI CSI |
| Ethernet | 1×Gigabit Ethernet |
| WIFI | WiFi 5, comply with IEEE 802.11a/b/g/n/ac standard |
| RTC | Support real-time clock |
| USB | 1×USB3.1 Gen1 Type-A Host (5Gbps) 1×USB3.1 Type-C OTG (5Gbps) 1×USB2.0 Type-A Host (480Mbps) |
| PCIE | 1×PCIE2.0 M.2 M-Key, 5Gbps |
| Audio | 3.5mm 4-segment audio jack, support MIC and audio output |
| Microphone Array | 6-channel MIC input |
| AEC | 2-channel AEC echo cancellation input |
| Fan Interface | 1×fan port, support 5V/12V fan, 1.25mm 3P connector |
| RTC Interface | 2Pin 1.25mm backup battery interface |
| Reserved Interfaces | 3×3.3V TTL UART 2×3.3V I2C 5×PWM 15×GPIO |
| Power Input | 12V 2A DC power, 5.5*2.0 standard DC jack |
| Heat Dissipation | Passive heat dissipation, fan cooling optional |
| Power Consumption | 10W (without external devices) |
| Net Weight | PCBA: 77g, Whole device: 888g |
| Package Weight | PCBA: 220g, Whole device: 1160g |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Operating Humidity | 20%~85% RH (non-condensing) |
| Storage Humidity | 5%~90% RH (non-condensing) |

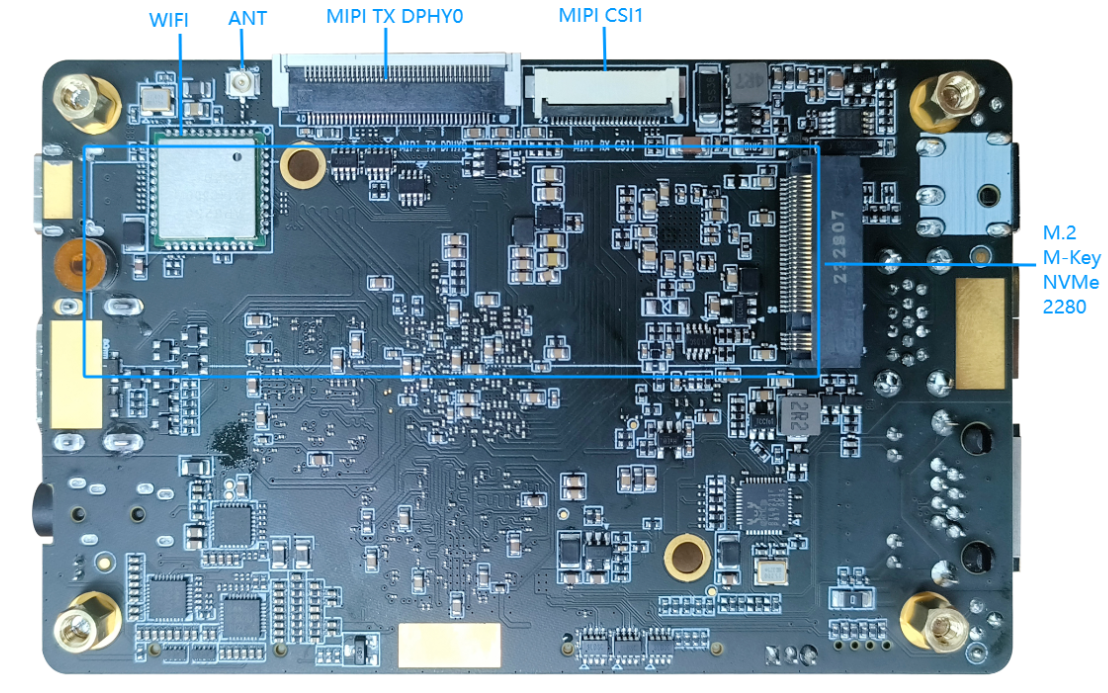

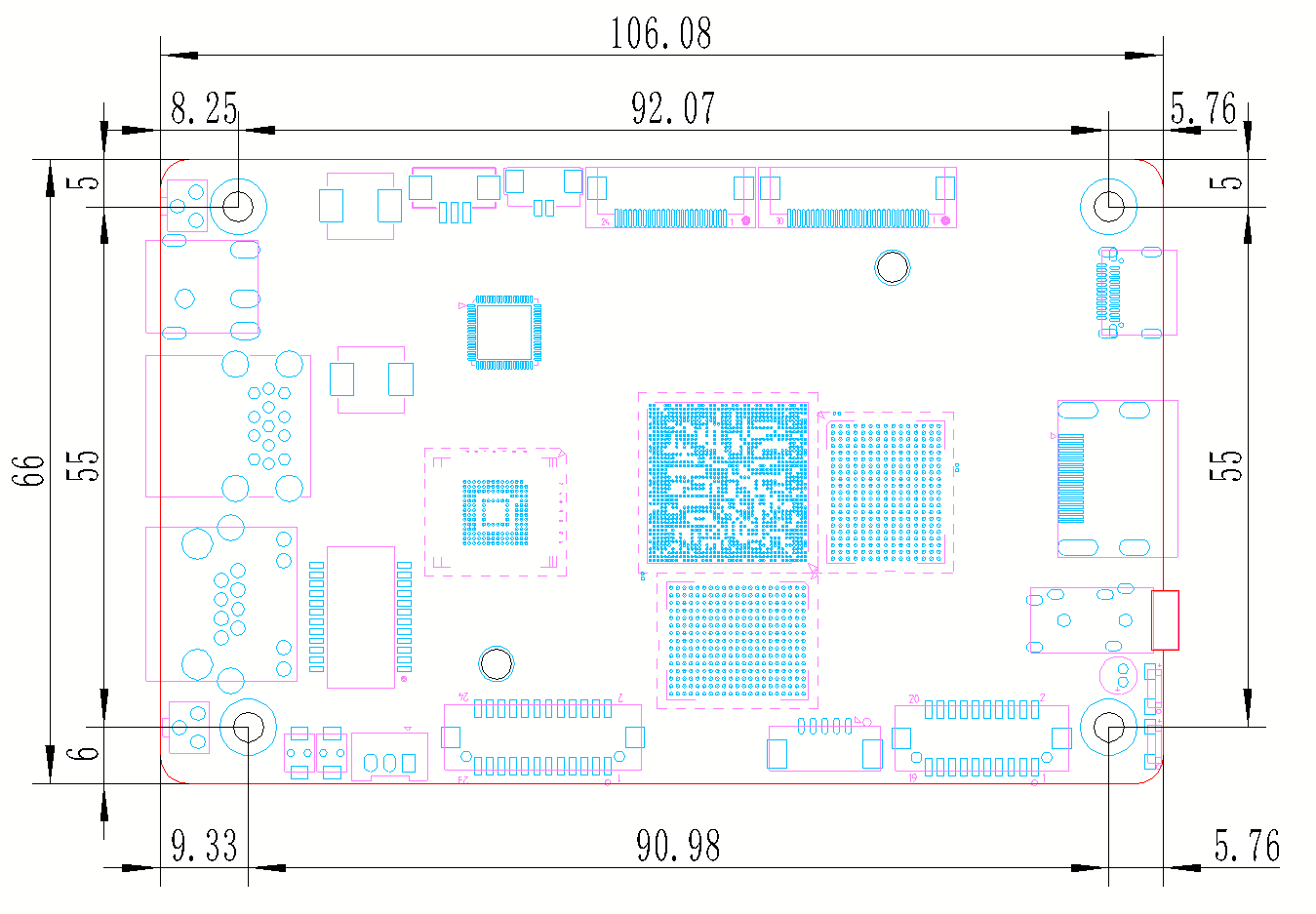

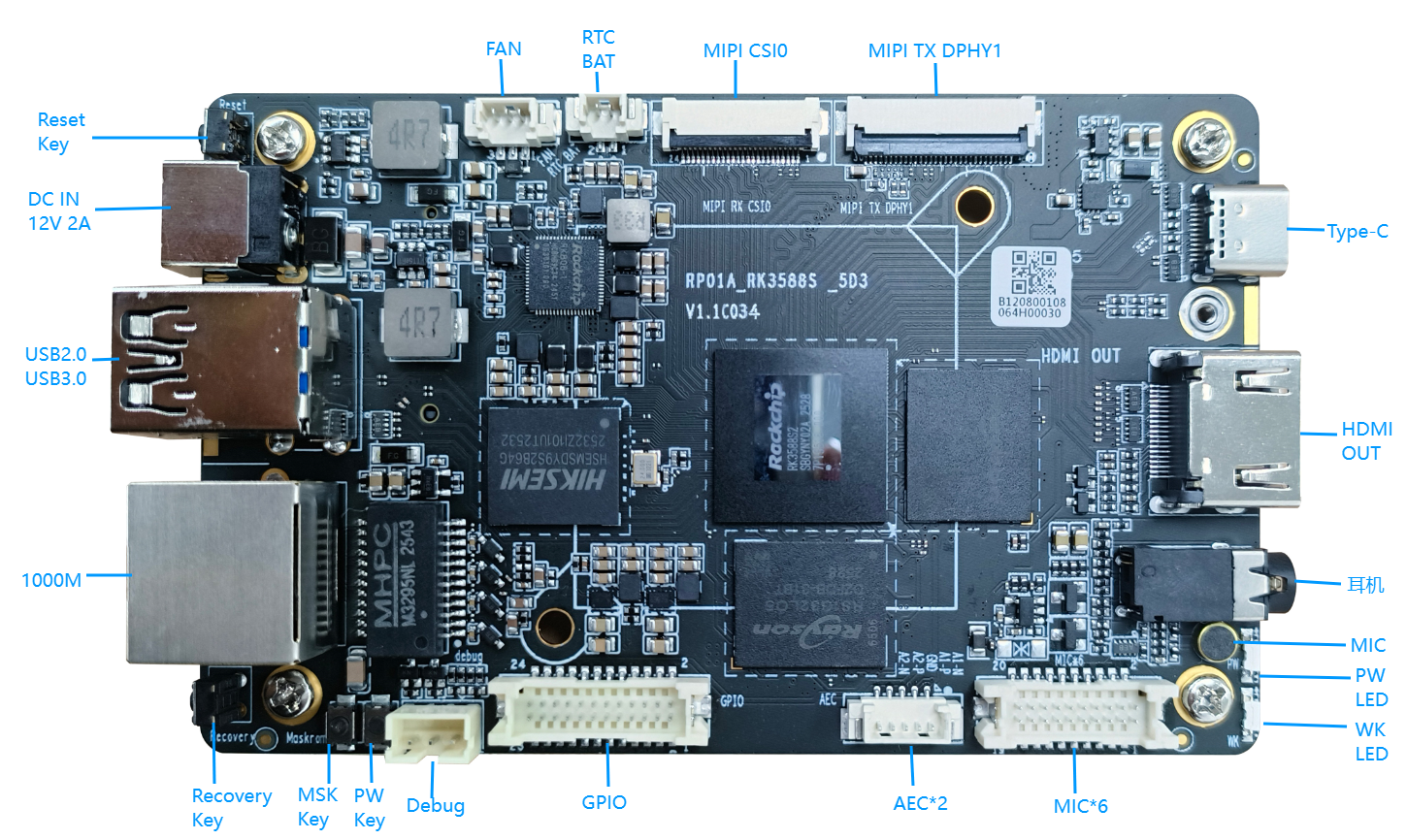

3. Product Schematic Diagram
