| Item | Content |
|---|---|
| Product No. | EDGE-RK3588-V1.2A |
| Version | V1.0 |
| Release Date | 2026-03-23 |
| Effective Date | 2026-03-23 |
| Document Status | Revising |
| Prepared by | Wang Zhihai |
| Reviewed by | |
| Confidentiality Level | Public |
| Version | Release Date | Upgrade Record |
|---|---|---|
| V1.0 | 2026-03-23 | First release |
1. Product Introduction
RK3588 is Rockchip's new flagship chip, built on 8nm process with octa-core CPU (4×Cortex-A76 + 4×Cortex-A55). It supports 8K@60Hz video output and decoding, and integrates a 6.0 TOPS built-in NPU to meet edge computing demands of most terminal devices.
Equipped with abundant interfaces, it enables triple-screen display (8K+4K+2K) or four-screen display (4K+4K+4K+2K). It comes with Type-C, SATA3.0, PCIE3.0 ports and dual gigabit Ethernet ports. Adopting 4×16-bit DDR channels, it supports up to 32GB memory.
2. Specification Parameters
Product Specifications
| Item | Specification |
|---|---|
| CPU | RK3588 Octa-core, Cortex-A76 + Cortex-A55, up to 2.4GHz |
| GPU | Mali-G610, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2, built-in high-performance 2D acceleration hardware |
| DDR | LPDDR4X, optional 4GB/8GB/16GB |
| NPU | 6.0 TOPS |
| System | Android / Debian / Buildroot / Ubuntu / Armbian Ubuntu 26.0.2 |
| Onboard Storage | Support eMMC5.1, SDIO3.0; optional 32GB/64GB/128GB |
| Display Output | 1×HDMI2.1: max 8K@60Hz, HDCP2.3 (4K@60Hz for Linux) 1×4Lane DP: max 8K@30Hz, HDCP2.3 (4K@60Hz for Linux) 1×4Lane Type-C: max 4K@60Hz, DP1.4a, HDCP2.3 |
| HDMI RX | Max 4K@60Hz |
| Camera | 1×2Lane MIPI CSI |
| Ethernet | 2×1000M Ethernet |
| WiFi | WiFi6 MIMO, IEEE 802.11a/b/g/n/ac/ax |
| POE Power | Reserved POE power port |
| RTC Clock | Supported |
| USB | 1×USB3.1 Type-A HOST 5Gbps 1×USB3.1 Type-C OTG 5Gbps 2×USB2.0 Type-A HOST 480Mbps |
| RTC Battery | Support CR1220 battery |
| SATA | 1×SATA3.0 7Pin (only 5V SATA devices) |
| PCIe | PCIe3.0 M.2 M-Key |
| 4G | Mini PCIe + Nano SIM card slot |
| Audio | 1×3.5mm 4-pin audio jack with MIC |
| Industrial Interface | 1×RS232, 1×RS485 |
| Other Interfaces | 6×GPIO, 1×I2C (shared with GPIO) |
| Power Input | 12V 2A DC, 5.5*2.0mm connector |
| Cooling Mode | Passive heat dissipation |
| Power Consumption | 10W (no external peripherals) |
| Net Weight | 795g±10g |
| Packing Weight | 1148g±10g |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Operating Humidity | 20%-85% RH (non-condensing) |
| Storage Humidity | 5%-90% RH (non-condensing) |

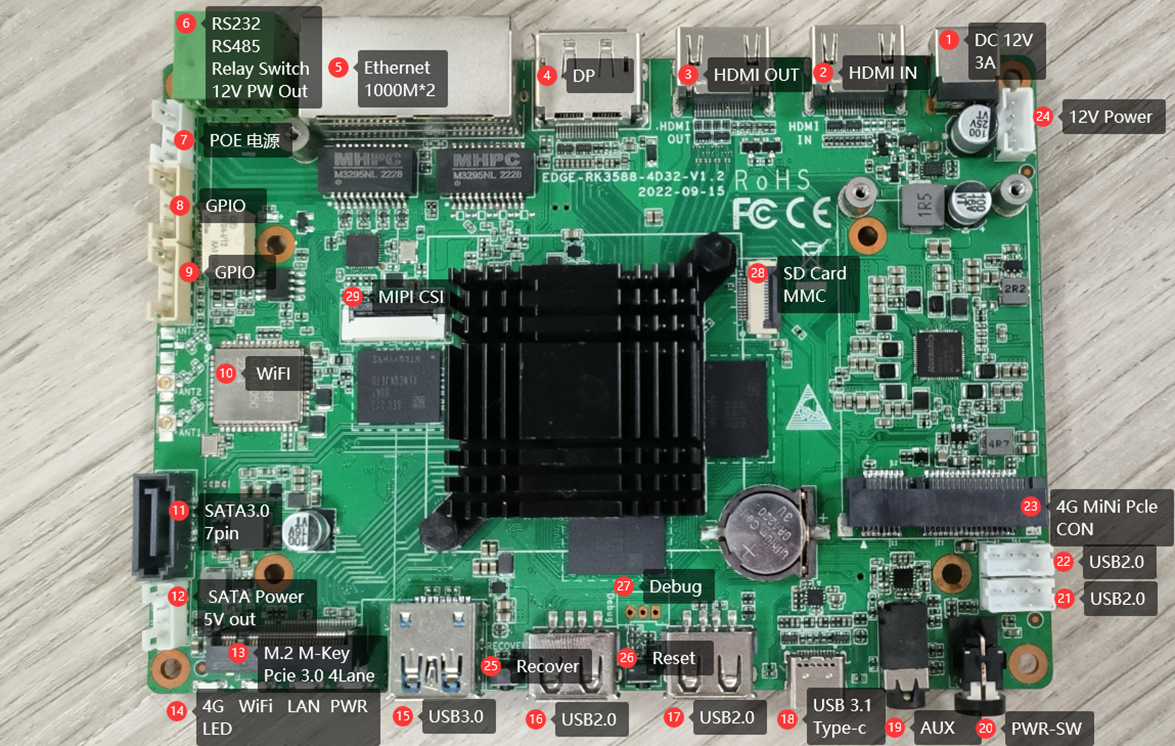

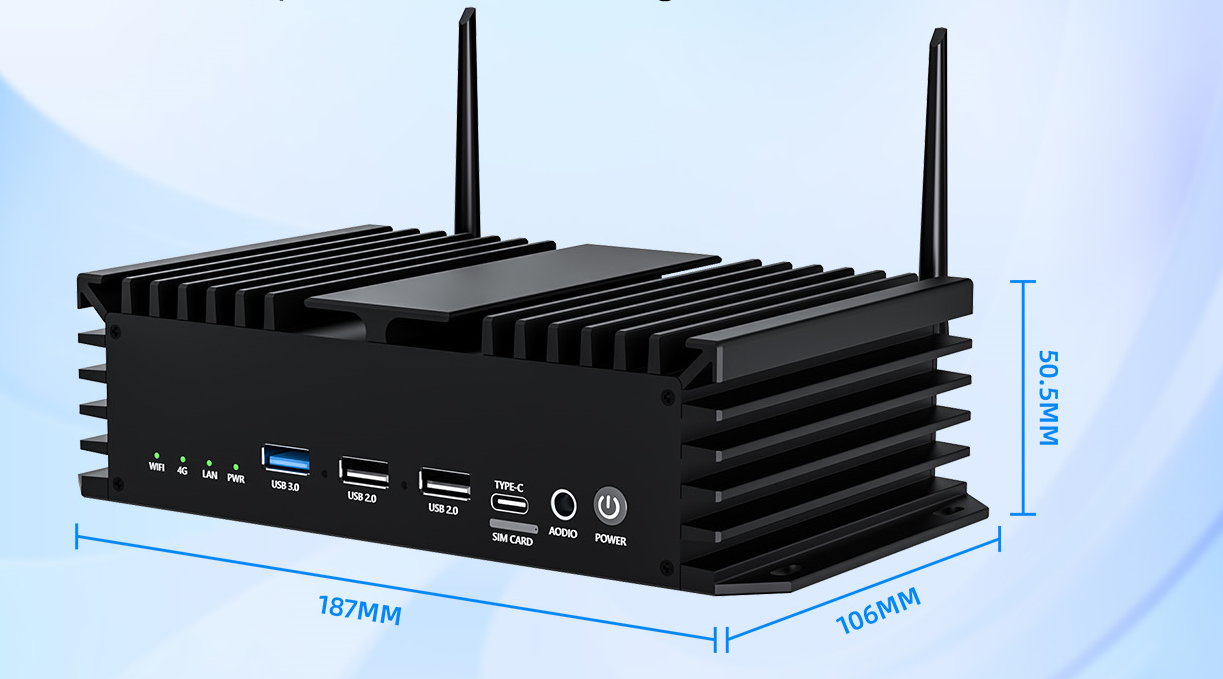

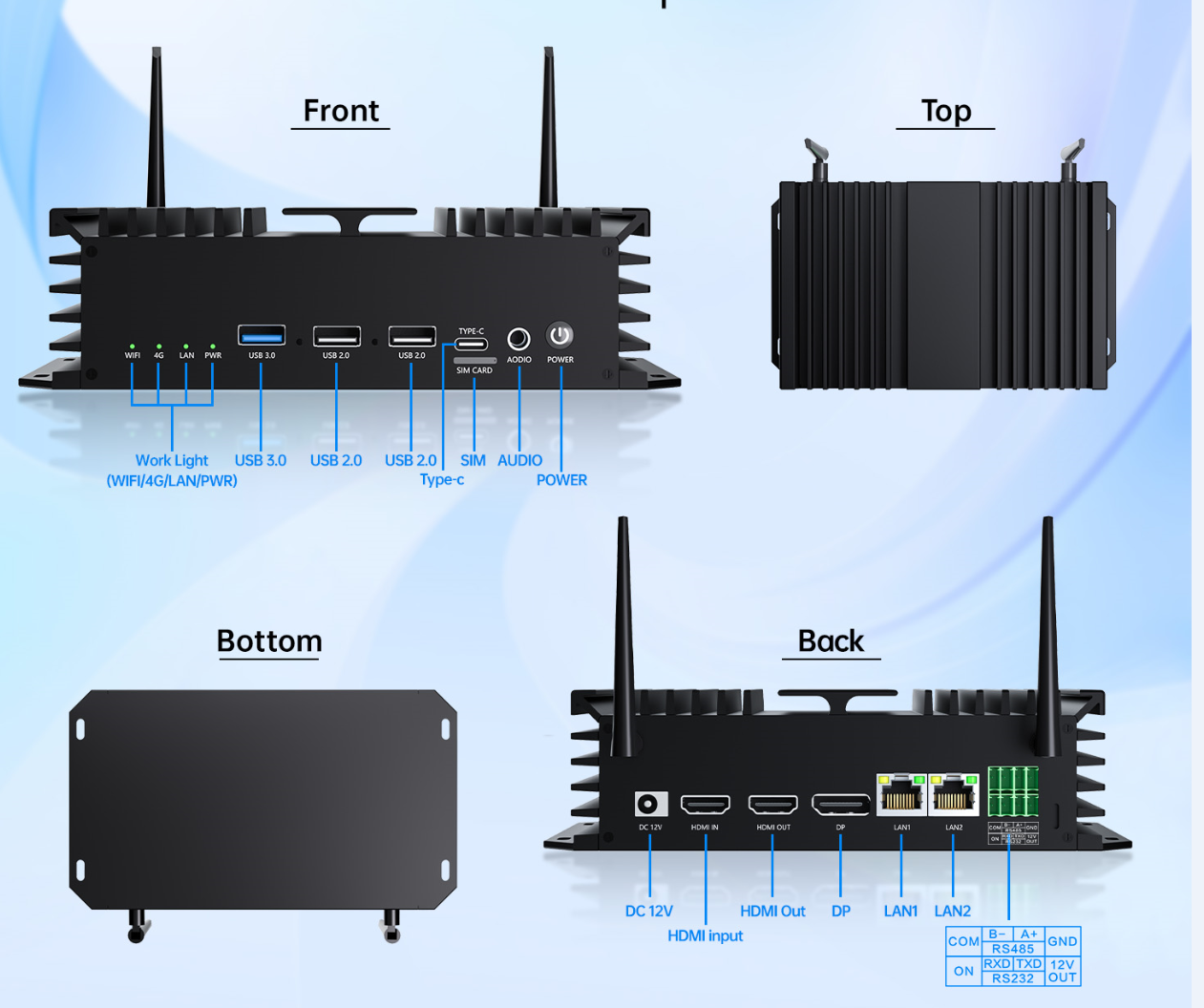

三、Product Schematic Diagram
