| Item | Content |
|---|---|
| Product No. | MINI PC-RK3588 |
| Version | V1.0 |
| Release Date | 2026-03-19 |
| Effective Date | 2026-03-19 |
| Document Status | Under Revision |
| Prepared by | Wang Zhihai |
| Reviewed by | - |
| Confidentiality Level | Public |
| Version | Release Date | Update Record |
|---|---|---|
| V1.0 | 2026-03-19 | First release |
1. Product Introduction
RK3588 is Rockchip's new flagship chip, built on 8nm process technology. It features an 8-core CPU (4×Cortex-A76 + 4×Cortex-A55). It supports 8K@60fps video output and decoding, and integrates a 6.0 TOPS NPU, capable of meeting edge computing requirements for most terminal devices.
2. Specifications
Product Specifications
| Item | Specifications |
|---|---|
| CPU | RK3588 Octa-core (Cortex-A76 + Cortex-A55), up to 2.4GHz |
| GPU | Mali-G610; Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2; Built-in high-performance 2D acceleration hardware |
| DDR | LPDDR4X; Optional: 4GB / 8GB / 16GB |
| NPU | 6.0 TOPS |
| OS | Android / Debian / Buildroot / Ubuntu / Armbian Ubuntu 26.0.2 |
| On-board Storage | Supports eMMC 5.1, SDIO 3.0; Optional: 32GB / 64GB / 128GB |
| Display Output | 2 × HDMI 2.1 (max 4K@60Hz, HDCP 2.3) 1 × 4-Lane Type-C (DP 1.4a, max 4K@60Hz, HDCP 2.3) |
| Ethernet | 1 × Gigabit Ethernet |
| Wi-Fi | Wi-Fi 6 MIMO, compliant with IEEE 802.11a/b/g/n/ac/ax |
| RTC | Supported, powered by CR1220 battery |
| USB | 1 × USB3.1 HOST Type-A (5Gbps) 1 × USB3.1 OTG Type-C (5Gbps) 2 × USB2.0 HOST Type-A (480Mbps) |
| Reserved Interfaces | 2 × TTL UART (3.3V level) 6 × GPIO (3.3V level) 1 × DP 1 × SATA |
| Power Supply | 12V 2A DC power connector (5.5×2.0) |
| Cooling | Passive cooling |
| Power Consumption | 10W (without external peripherals) |
| Net Weight | 251g ± 10g |
| Package Weight | 610g ± 10g |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Operating Humidity | 20% ~ 85% RH (Non-condensing) |
| Storage Humidity | 5% ~ 90% RH (Non-condensing) |

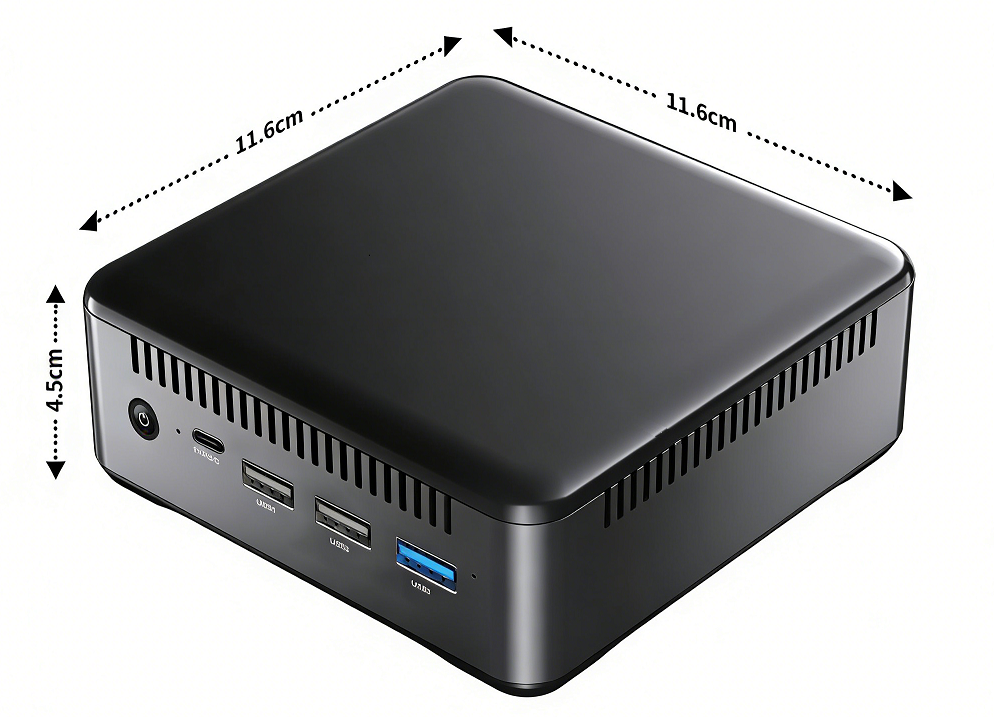

3、Product Schematic Diagram
