Item	Content
Product No.	V01-RK3588S
Version	V1.0
Release Date	2026-03-29
Effective Date	2026-03-29
Document Status	Under Revision
Prepared by	Wang Zhihai
Reviewed by
Confidentiality Level	Public

Version	Release Date	Upgrade Record
V1.0	2026-03-29	First release

1. Product Introduction

RK3588S is a cost-effective flagship chip from Rockchip, built on 8nm process. It features an 8-core CPU (4×Cortex-A76 + 4×Cortex-A55). The chip supports 8K@60fps video output and decoding, and integrates a 6.0 TOPS NPU, capable of meeting edge computing requirements for most terminal devices.

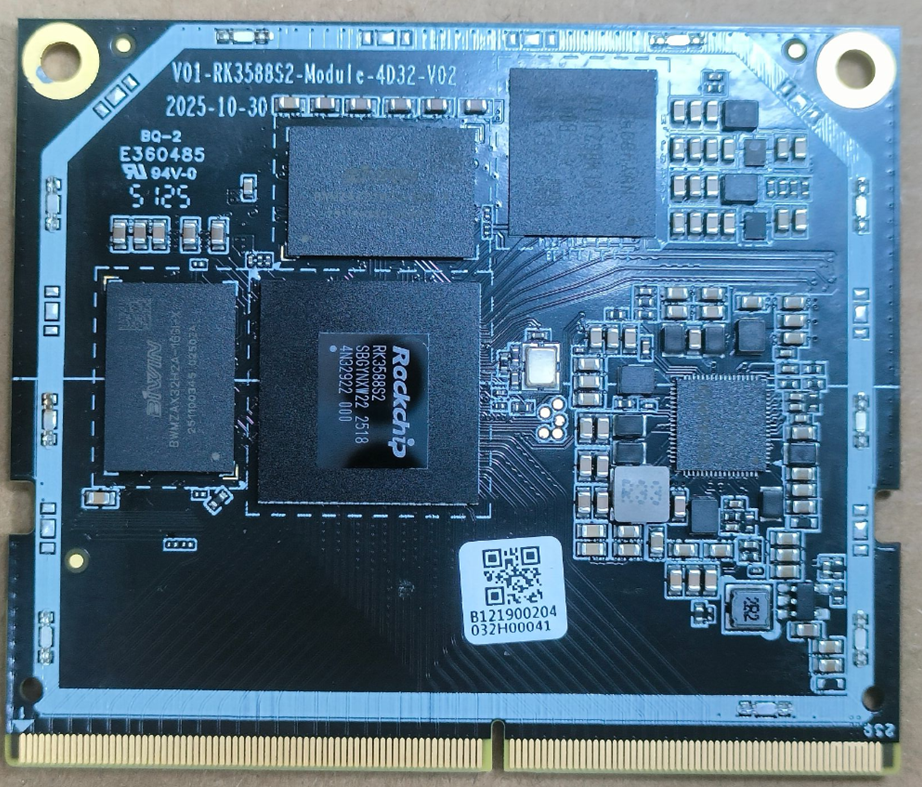

V01-RK3588S is designed as a core board. All functional interfaces are led out to a DDR4 SO-DIMM connector for easy use and development, delivering an efficient solution for intelligent devices.

2. Specifications

Product Specifications

Item	Specifications
CPU	RK3588S Octa-core (Cortex-A76 + Cortex-A55), up to 2.4GHz
GPU	Mali-G610; Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2  Built-in high-performance 2D acceleration hardware
DDR	LPDDR4X; Optional: 4GB / 8GB / 16GB
NPU	6.0 TOPS
Operating System	Android / Debian / Buildroot / Ubuntu (User self-development)
Onboard Storage	Supports eMMC 5.1, SDIO 3.0  Optional: 16GB / 32GB / 64GB / 128GB
Interface Type	260-Pin DDR4 SO-DIMM
PCIe	PCIe 2.0 ×2 Lanes (Shared with SATA and USB 3.0)
SATA	2 × SATA 3.0 (Shared with PCIe and USB 3.0)
USB OTG	1 × Type-C (USB3.0 + USB2.0 OTG) with DP output
USB Host	1 × USB3.0 Host (Shared with PCIe & SATA) + 2 × USB2.0 Host
HDMI	1 × HDMI 2.1 (8K), shared with EDP
EDP	1 × 4-Lane EDP, shared with HDMI
MIPI TX	2 × MIPI D/C PHY
MIPI RX	1 × MIPI D/C PHY + 2 × 4-Lane MIPI DPHY (Compatible with 4 × 2-Lane)
SDMMC	1 × SDMMC 2.0/3.0
SDIO	1 × SDIO 3.0
RGMII	1 × RGMII
ADC	4 × ADC
UART	9 × TTL UART + 1 × Debug UART
PWM	16 × PWM
I2C	9 × I2C
SPI	6 × SPI
I2S	4 × I2S
Power Supply	4.0V, 3A
Max Power Consumption	10W
Net Weight	PCBA: 16g

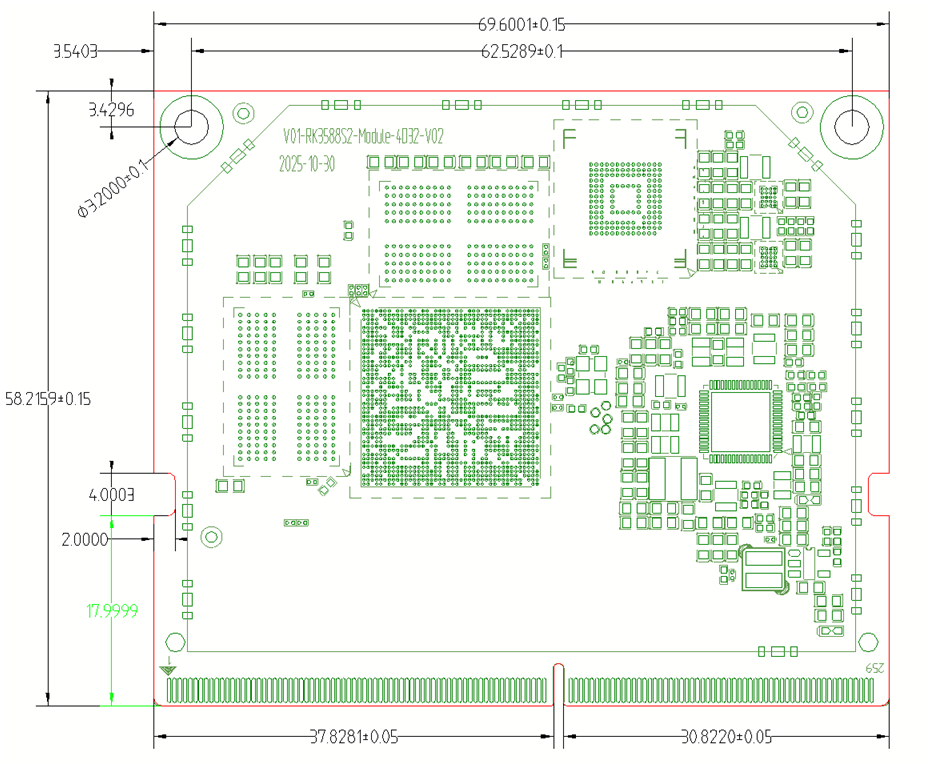

Dimensions	69.6 mm × 58.21 mm
Operating Temperature	-20℃ ~ 60℃
Storage Temperature	-20℃ ~ 70℃
Operating Humidity	20% ~ 85% RH (Non-condensing)
Storage Humidity	5% ~ 90% RH (Non-condensing)

3.Product Schematic Diagram

4. Interface Definition

Top Layer Pin Definition

PIN	Function 1	Function 2	Function 3	Remarks
1	GND	GND
3	HDMI0_TX_SBDN	HDMI0_TX_SBDN
5	HDMI0_TX_SBDP	HDMI0_TX_SBDP
7	GND	GND
9	HDMI0_TX3N	HDMI0_TX3N
11	HDMI0_TX3P	HDMI0_TX3P
13	GND	GND
15	HDMI0_TX0N	HDMI0_TX0N
17	HDMI0_TX0P_	HDMI0_TX0P_
19	GND	GND
21	HDMI0_TX1N	HDMI0_TX1N
23	HDMI0_TX1P	HDMI0_TX1P
25	GND	GND
27	HDMI0_TX2N	HDMI0_TX2N
29	HDMI0_TX2P	HDMI0_TX2P
31	GND	GND
33	TYPEC0_SBU2	TYPEC0_SBU2
35	TYPEC0_SBU1	TYPEC0_SBU1
37	TYPEC0_SSRX1N	TYPEC0_SSRX1N
39	TYPEC0_SSRX1P	TYPEC0_SSRX1P
41	GND	GND
43	TYPEC0_SSTX1P	DP0_TX1P
45	TYPEC0_SSTX1N	DP0_TX1N
47	GND	GND
49	TYPEC0_SSRX2N	DP0_TX2N
51	TYPEC0_SSRX2P	DP0_TX2P
53	GND	GND
55	TYPEC0_SSTX2P	DP0_TX3P
57	TYPEC0_SSTX2N	DP0_TX3N
59	GND	GND
61	MIPI_DPHY1_TX_D0N	MIPI_CPHY1_TX_TRIO0_A
63	MIPI_DPHY1_TX_D0P	MIPI_CPHY1_TX_TRIO0_B
65	GND	GND
67	MIPI_DPHY1_TX_D1N	MIPI_CPHY1_TX_TRIO0_C
69	MIPI_DPHY1_TX_D1P	MIPI_CPHY1_TX_TRIO1_A
71	GND	GND
73	MIPI_DPHY1_TX_CLKN	MIPI_CPHY1_TX_TRIO1_B
75	MIPI_DPHY1_TX_CLKP	MIPI_CPHY1_TX_TRIO1_C
77	GND	GND
79	MIPI_DPHY1_TX_D2N	MIPI_CPHY1_TX_TRIO2_A
81	MIPI_DPHY1_TX_D2P	MIPI_CPHY1_TX_TRIO2_B
83	GND	GND
85	MIPI_DPHY1_TX_D3N	MIPI_CPHY1_TX_TRIO2_C
87	MIPI_DPHY1_TX_D3P
89	GND	GND
91	MIPI_DPHY1_RX_D0N	MIPI_CPHY1_RX_TRIO0_A
93	MIPI_DPHY1_RX_D0P	MIPI_CPHY1_RX_TRIO0_B
95	MIPI_DPHY1_RX_D1N	MIPI_CPHY1_RX_TRIO0_C
97	MIPI_DPHY1_RX_D1P	MIPI_CPHY1_RX_TRIO1_A
99	GND	GND
101	MIPI_DPHY1_RX_CLKN	MIPI_CPHY1_RX_TRIO1_B
103	MIPI_DPHY1_RX_CLKP	MIPI_CPHY1_RX_TRIO1_C
105	GND	GND
107	MIPI_DPHY1_RX_D2N	MIPI_CPHY1_RX_TRIO2_A
109	MIPI_DPHY1_RX_D2P	MIPI_CPHY1_RX_TRIO2_B
111	MIPI_DPHY1_RX_D3N	MIPI_CPHY1_RX_TRIO2_C
113	MIPI_DPHY1_RX_D3P
115	GND	GND
117	MIPI_DPHY0_TX_D0N	MIPI_CPHY0_TX_TRIO0_A
119	MIPI_DPHY0_TX_D0P	MIPI_CPHY0_TX_TRIO0_B
121	GND	GND
123	MIPI_DPHY0_TX_D1N	MIPI_CPHY0_TX_TRIO0_C
125	MIPI_DPHY0_TX_D1P	MIPI_CPHY0_TX_TRIO1_A
127	GND	GND
129	MIPI_DPHY0_TX_CLKN	MIPI_CPHY0_TX_TRIO1_B
131	MIPI_DPHY0_TX_CLKP	MIPI_CPHY0_TX_TRIO1_C
133	GND	GND
135	MIPI_DPHY0_TX_D2N	MIPI_CPHY0_TX_TRIO2_A
137	MIPI_DPHY0_TX_D2P	MIPI_CPHY0_TX_TRIO2_B
139	GND	GND
141	MIPI_DPHY0_TX_D3N	MIPI_CPHY0_TX_TRIO2_C
143	MIPI_DPHY0_TX_D3P
145	GND	GND
147	MIPI_CSI0_RX_D0N
149	MIPI_CSI0_RX_D0P
151	MIPI_CSI0_RX_D1N
153	MIPI_CSI0_RX_D1P
155	GND	GND
157	MIPI_CSI0_RX_CLK0N
159	MIPI_CSI0_RX_CLK0P
161	GND	GND
163	MIPI_CSI0_RX_D2N
165	MIPI_CSI0_RX_D2P
167	MIPI_CSI0_RX_D3N
169	MIPI_CSI0_RX_D3P
171	GND	GND
173	MIPI_CSI0_RX_CLK1P
175	MIPI_CSI0_RX_CLK1N
177	GND	GND
179	MIPI_CSI1_RX_CLK1P
181	MIPI_CSI1_RX_CLK1N
183	GND	GND
185	MIPI_CSI1_RX_D2N
187	MIPI_CSI1_RX_D2P
189	MIPI_CSI1_RX_D3P
191	MIPI_CSI1_RX_D3N
193	GND	GND
195	MIPI_CSI1_RX_CLK0P
197	MIPI_CSI1_RX_CLK0N
199	GND	GND
201	MIPI_CSI1_RX_D0N
203	MIPI_CSI1_RX_D0P
205	MIPI_CSI1_RX_D1N
207	MIPI_CSI1_RX_D1P
209	GND	GND
211	PCIE20_0_REFCLKP
213	PCIE20_0_REFCLKN
215	GND	GND
217	PCIE20_0_RXN	SATA30_0_RXN
219	PCIE20_0_RXP	SATA30_0_RXP
221	GND	GND
223	PCIE20_0_TXN	SATA30_0_TXN
225	PCIE20_0_TXP	SATA30_0_TXP
227	GND	GND
229	PCIE20_2_REFCLKN
231	PCIE20_2_REFCLKP
233	GND
235	PCIE20_2_TXP	USB30_2_SSTXP	SATA30_2_TXP
237	PCIE20_2_TXN	USB30_2_SSTXN	SATA30_2_TXN
239	GND
241	PCIE20_2_RXP	USB30_2_SSRXP	SATA30_2_RXP
243	PCIE20_2_RXN	USB30_2_SSRXN	SATA30_2_RXN
245	GND	GND
247	GND	GND
249	POWER	4.0V Power Input
251	POWER	4.0V Power Input
253	POWER	4.0V Power Input
255	POWER	4.0V Power Input
257	GND	GND
259	GND	GND

底层pin脚定义

PIN	Function 1	IO Voltage	Function 2	Function 3	Function 4	Function 5	Function 6	Function 7
2	GND							GND
4	SDMMC_CLK	1.8V/3.3V	UART5_TX_M0	MCU_JTAG_TMS_M0	PDM1_CLK0_M0	CAN0_RX_M1	TEST_CLKOUT_M0	GPIO4_D5_d
6	SDMMC_CMD	1.8V/3.3V	UART5_RX_M0	MCU_JTAG_TCK_M0	PDM1_CLK1_M0	CAN0_TX_M1	PWM7_IR_M1	GPIO4_D4_u
8	SDMMC_D0	1.8V/3.3V	UART2_TX_M1	JTAG_TCK_M1	PDM1_SDI3_M0	I2C3_SCL_M4	PWM8_M1	GPIO4_D0_u
10	SDMMC_D1	1.8V/3.3V	UART2_RX_M1	JTAG_TMS_M1	PDM1_SDI2_M0	I2C3_SDA_M4	PWM9_M1	GPIO4_D1_u
12	SDMMC_D2	1.8V/3.3V	UART5_CTSN_M0	JTAG_TCK_M0	PDM1_SDI1_M0	I2C8_SCL_M0		GPIO4_D2_u
14	SDMMC_D3	1.8V/3.3V	UART5_RTSN_M0	JTAG_TMS_M0	PDM1_SDI0_M0	I2C8_SDA_M0	PWM10_M1	GPIO4_D3_u
16	GND
18	USB 2.0 Host0 DP
20	USB 2.0 Host0 DM
22	USB 2.0 Host1 DP
24	USB 2.0 Host1 DM
26	GND
28	TYPEC0_OTG_DP
30	TYPEC0_OTG_DM
32	GND
34	ADC_VIN0_BOOT		Maskrom
36	RECOVERY		SARADC_VIN1_KEY
38	SARADC_VIN2
40	SARADC_VIN3
42	PWRON_L		PWRON_L
44	VCC_3V3_S0		3.3V Power Output
46	VCCIO6		VCCIO6 Power Input
48	VCC1V8_PMU_DDR_S3		1.8V Power Output
50	GND
52	GPIO4_A0_d	VCCIO6	CIF_D0	BT1120_D0	PCIE20X1_1_CLKREQN_M1	I2S1_MCLK_M0	UART9_RTSN_M1	SPI0_MISO_M1
54	GPIO4_A1_d	VCCIO6	CIF_D1	BT1120_D1	PCIE20X1_1_WAKEN_M1	I2S1_SCLK_M0	UART9_CTSN_M1	SPI0_MOSI_M1
56	GPIO4_A2_d	VCCIO6	CIF_D2	BT1120_D2	PCIE20X1_1_PERSTN_M1	I2S1_LRCK_M0	SPI0_CLK_M1
58	GPIO4_A3_d	VCCIO6	CIF_D3	BT1120_D3	UART0_TX_M2
60	GPIO4_A4_d	VCCIO6	CIF_D4	BT1120_D4	I2C3_SCL_M2	UART0_RX_M2	SPI2_MISO_M1
62	GPIO4_A5_d	VCCIO6	CIF_D5	BT1120_D5	I2S1_SDI0_M0	I2C3_SDA_M2	UART3_TX_M2	SPI2_MOSI_M1
64	GPIO4_A6_d	VCCIO6	CIF_D6	BT1120_D6	I2S1_SDI1_M0	I2C5_SCL_M2	UART3_RX_M2	SPI2_CLK_M1
66	GPIO4_A7_d	VCCIO6	CIF_D7	BT1120_D7	I2S1_SDI2_M0	I2C5_SDA_M2		SPI2_CS0_M1
68	GPIO4_B0_d	VCCIO6	CIF_CLKIN	BT1120_CLKOUT	I2S1_SDI3_M0	I2C6_SDA_M3	UART8_TX_M0	SPI2_CS1_M1
70	GPIO4_B1_u	VCCIO6	MIPI_CAMERA0_CLK_M0	I2S1_SDO0_M0	I2C6_SCL_M3	UART8_RX_M0	SPI0_CS1_M1	SPDIF1_TX_M1
72	GPIO4_B2_u	VCCIO6	CIF_HREF	BT1120_D8	PCIE20X1_1_BUTTON_RSTN	I2S1_SDO1_M0	I2C7_SCL_M3	UART8_RTSN_M0
74	GPIO4_B3_u	VCCIO6	CIF_VSYNC	BT1120_D9	PCIE20X1_2_BUTTON_RSTN	I2S1_SDO2_M0	I2C7_SDA_M3	UART8_CTSN_M0
76	GPIO4_B4_u	VCCIO6	CIF_CLKOUT	BT1120_D10	SPDIF0_TX_M1	I2S1_SDO3_M0	DP0_HPDIN_M0	UART9_TX_M1
78	GPIO4_B5_u	VCCIO6	BT1120_D11	SPI3_MISO_M1	PWM12_M1			UART9_RX_M1
80	GPIO4_B6_u	VCCIO6	BT1120_D12	SPI3_MOSI_M1	PWM13_M1	I2C5_SCL_M1	SATA0_ACT_LED_M0
82	GPIO4_B7_u	VCCIO6	BT1120_D13	SPI3_CLK_M1	HDMI_TX0_SCL_M0	I2C5_SDA_M1
84	GPIO4_C0_u	VCCIO6	BT1120_D14	SPI3_CS0_M1	HDMI_TX0_SDA_M0	I2C8_SCL_M3
86	GPIO4_C1_d	VCCIO6	BT1120_D15	SPI3_CS1_M1	HDMI_TX0_CEC_M0	I2C8_SDA_M3	PWM6_M1	SPDIF1_TX_M2
88	GND							GND
90	ADC_DET	1.8V	GPIO3_D1_d	CIF_D13	SPI0_MISO_M3		UART4_TX_M1	PCIE20X1_2_PERSTN_M0
92	ACC_Det	1.8V	GPIO3_C7_u	CIF_D11	SPI3_MOSI_M3	I2C5_SCL_M0		PCIE20X1_2_CLKREQN_M0
94	MFI_RST	1.8V	GPIO3_C6_u	CIF_D10	SPI3_MISO_M3
96	USB_SW	1.8V	GPIO3_D0_u	CIF_D12	SPI3_CLK_M3	I2C5_SDA_M0	UART4_RX_M1	PCIE20X1_2_WAKEN_M0
98	Uart5_TX_M1	1.8V	GPIO3_C4_u	CIF_D8	SPI3_CS0_M3	FSPI_CS0N_M2	UART5_TX_M1	CAN2_RX_M0
100	Uart5_RX_M1	1.8V	GPIO3_C5_u	CIF_D9	SPI3_CS1_M3	FSPI_CS1N_M2	UART5_RX_M1	CAN2_TX_M0
