| Item | Content |
|---|---|
| Product No. | EDGE-RK3568 |
| Version | V1.0 |
| Release Date | 2026-04-11 |
| Effective Date | 2026-04-11 |
| Document Status | Under Revision |
| Compiled by | Wang Zhihai |
| Reviewed by | |
| Confidentiality Level | Public |
| Version | Release Date | Revision Record |
|---|---|---|
| V1.0 | 2026-04-11 | Initial release |
1. Product Introduction
RK3568 is equipped with four 64-bit Cortex-A55 processors based on the new ARM v8.2-A architecture, with a maximum main frequency of 2.0 GHz and greatly improved performance. Built on the advanced 22nm process, it features low power consumption and high performance.
It comes with abundant interfaces, including HDMI, eDP, LVDS and MIPI for multi-display output. It also integrates Type-C, SATA 3.0, PCIe 3.0, as well as multiple industrial control interfaces such as RS232, RS485, UART and GPIO. Dual Gigabit Ethernet ports are available, and 4G LTE network can be expanded via MINI PCIe.
2. Specifications
Product Specifications
| Item | Specifications |
|---|---|
| CPU | RK3568 Quad-core ARM Cortex-A55, up to 2.0GHz |
| GPU | Mali-G52; Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.1, Vulkan 1.1; Built-in high-performance 2D acceleration hardware |
| DDR | LPDDR4X; Optional: 2GB/4GB/8GB |
| NPU | 1.0 TOPS |
| OS | Android / Debian / Buildroot / Ubuntu |
| On-board Storage | Supports eMMC 5.1, SDIO 3.0; Optional: 16GB/32GB/64GB/128GB |
| Expansion Storage | SATA 3.0 for SSD/HDD; M.2 NGFF M-KEY SSD via PCIe 3.0 |
| Display Output | 1 × HDMI 2.0a (4K@60Hz, HDCP 1.4 / 2.2) 1 × 4-Lane MIPI-DSI with touch (Reserved) 1 × 8-Lane LVDS (Reserved) 1 × 4-Lane eDP 1.3 (Reserved) |
| Camera | 2 × 2-Lane MIPI CSI (Reserved) |
| Ethernet | 2 × Gigabit Ethernet |
| Wi-Fi | Wi-Fi 5, IEEE 802.11a/b/g/n/ac |
| Bluetooth | V5.0 |
| 4G | Supported via Mini PCIe interface |
| USB | 1 × USB3.1 Host (Type-A), 5Gbps 1 × USB2.0 OTG (Type-C), 5Gbps 1 × USB2.0 Host (Type-A), 480Mbps |
| PCIe | 2 × PCIe 3.0, M.2 M-Key |
| Audio | 1 × 3.5mm 3-segment jack for MIC and audio 1 × Four-microphone array (Reserved) |
| RTC | Supported |
| Industrial Interfaces | 1 × RS232 4 × RS485 2 × TTL UART 4 × GPIO |
| Power Supply | 12V 2A DC connector (5.5×2.0mm) |
| Heat Dissipation | Passive cooling |
| Power Consumption | 8W (No external devices connected) |
| Net Weight | PCBA: 77g; Complete unit: 888g |
| Package Weight | PCBA: 220g; Complete unit: 1160g |
| Operating Temperature | -20℃ ~ 45℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Operating Humidity | 20% ~ 85% RH (Non-condensing) |
| Storage Humidity | 5% ~ 90% RH (Non-condensing) |

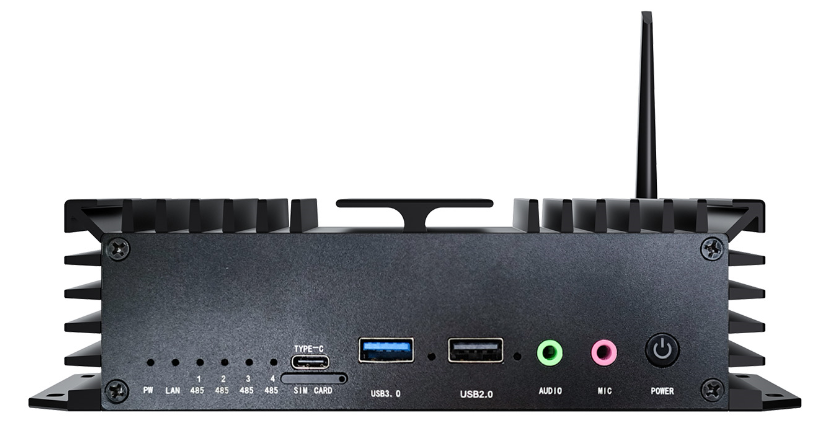

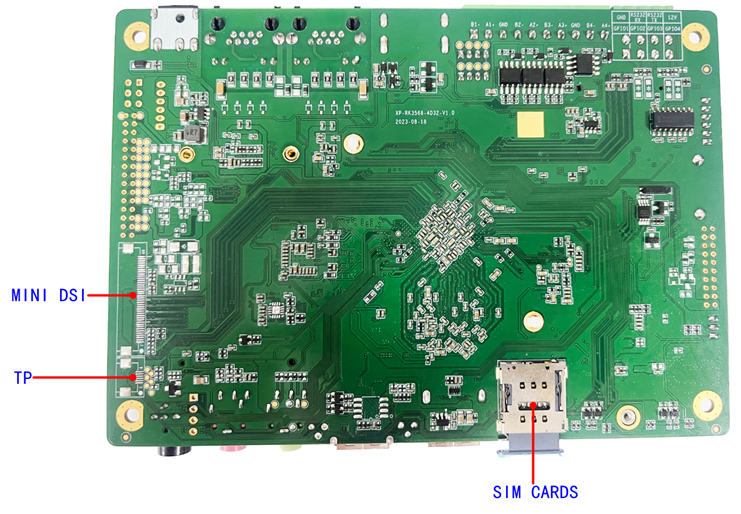

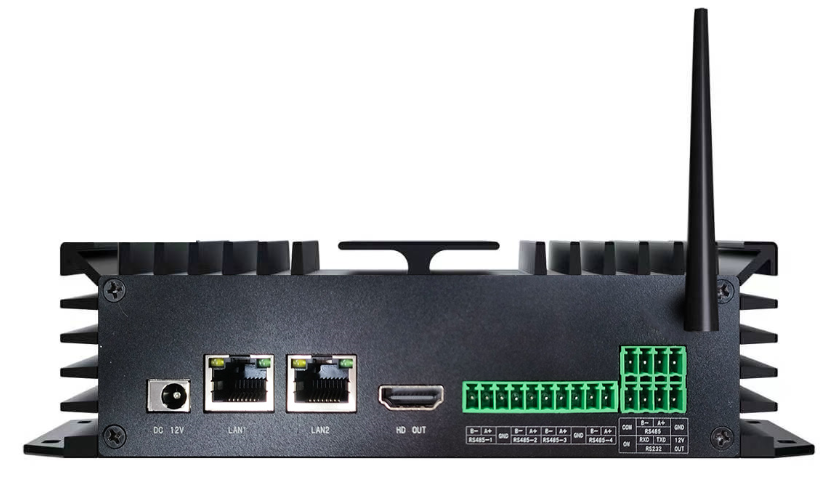

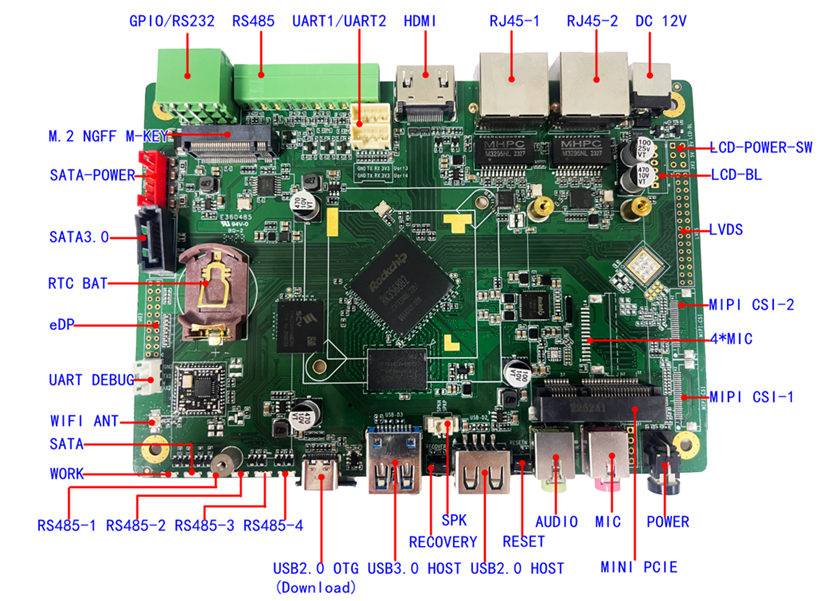

3. Product Schematic Diagram
