08A Hardware Specification
| Item | Content |
| Product code | RP08A-RK3572 |
| Version | V1.0 |
| Release date | 2026-05-18 |
| Effective date | 2026-05-18 |
| Document status | Revised |
| Prepared by | Wang Zhihai |
| Confidentiality | Public |
| Version | Release date | Change log |
| V1.0 | 2026-05-18 | First release |
1. Product Introduction
This product is built on Rockchip's RK3572 8nm octa-core AIoT SoC, focusing on low power consumption, high stability, AI-powered smart storage and high-speed transfer.
It targets home private cloud, SMB office NAS, edge storage gateway and home media center, replacing traditional power-hungry x86 NAS while balancing performance, cost and long-term 7×24 stability.
2. Specifications
Product Specification
| CPU | RK3572 Octa-core, 2× Cortex-A73 + 4× Cortex-A53 + 2× Cortex-A53 |
| Max frequency up to 2.3GHz | |
| GPU | Mali-G310 GPU, supports OpenGL ES 1.1/2.0/3.2, OpenCL 3.0, Vulkan 1.4 |
| Built-in high-performance 2D hardware accelerator | |
| DDR | LPDDR5X-5500 |
| Optional: 4GB / 8GB / 16GB | |
| NPU | 4.0 TOPS (INT8) |
| OS | FN OS |
| On-board storage | Supports eMMC 5.1, SDIO 3.0 |
| Optional: 16GB / 32GB / 64GB / 128GB | |
| Display output | 1× HDMI 2.1 port, up to 4K@60Hz, HDCP 2.3 compliant |
| Ethernet | 1× Gigabit Ethernet (1000M) |
| RTC clock | RTC supported |
| USB | 2× USB3.2 HOST Type-A (5Gbps) |
| 1× USB3.2 OTG Type-C (5Gbps) | |
| SATA | 2× SATA 3.0 ports |
| Fan | 1× 12V cooling fan |
| LED indicators | Power LED: White |
| HDD LED ×2: Green | |
| ETH LED: Green | |
| Power supply | 12V 3A DC power supply, 5.5×2.0mm DC barrel jack |
| Cooling method | Active cooling |
| Power consumption | 5W + 12W×2 (with HDDs installed) |
| Operating temperature | -20℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Operating humidity | 20-85% RH (non-condensing) |
| Storage humidity | 5-90% RH (non-condensing) |
Power consumption
The figure above is composed of 5W host + 12W per drive. With 2 drives installed, full-system peak is about 29W. Make sure your adapter rating and ventilation are sufficient.
Interface Quick Reference
| Interface | Qty | Specification |
|---|---|---|
| HDMI 2.1 | 1 | 4K@60Hz, HDCP 2.3 |
| Gigabit Ethernet | 1 | 1000M |
| USB3.2 Type-A | 2 | 5Gbps, HOST |
| USB3.2 Type-C | 1 | 5Gbps, OTG |
| SATA 3.0 | 2 | Supports 2.5″ / 3.5″ drives |
| DC power | 1 | 12V 3A, 5.5×2.0mm |

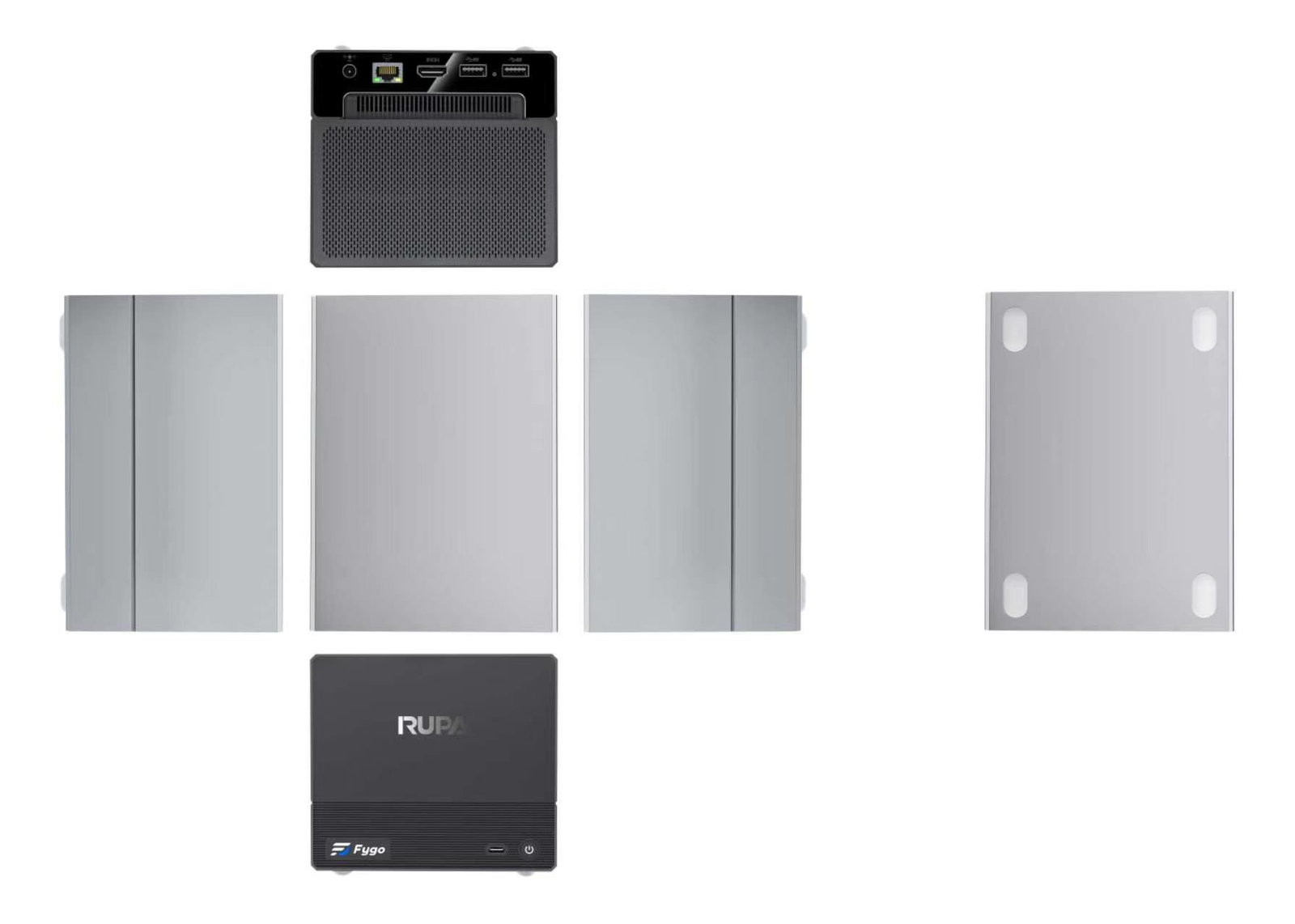

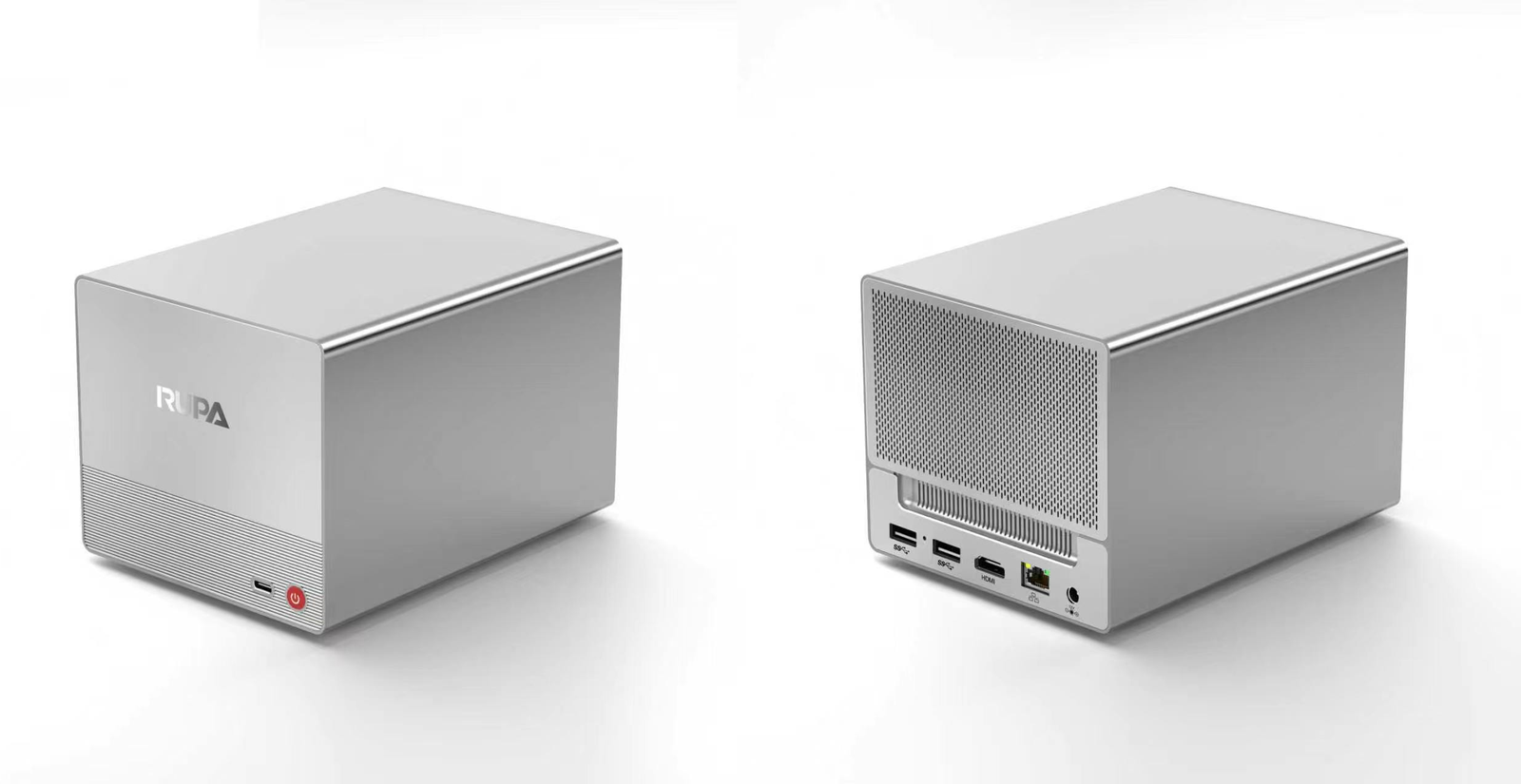

3. Product Illustration
About weight
Net weight and packing weight will be based on final production measurements;
the specification sheet currently uses xxx g / xxxx g as placeholders.
