08B Hardware Specification
Core
| Item | Specification |
|---|---|
| SoC | Rockchip RK3572 octa-core: 2×Cortex-A73 + 6×Cortex-A53, up to 2.3GHz (8nm) |
| GPU | Mali-G310, OpenGL ES 1.1/2.0/3.2, OpenCL 3.0, Vulkan 1.4, built-in high-performance 2D accelerator |
| NPU | 4.0 TOPS (INT8) |
| Memory | LPDDR4X-4200, 2GB / 4GB / 8GB optional |
Storage & OS
| Item | Specification |
|---|---|
| Storage (optional modules) | eMMC 5.1: 16GB / 32GB / 64GB / 128GB |
| UFS 2.2 / UFS 2.1: 64GB / 128GB / 256GB | |
| SPI Flash module | |
| OS | Android / Debian / Ubuntu / Armbian / Buildroot |
Display & Camera
| Item | Specification |
|---|---|
| Display output | 1× HDMI 2.1 (up to 4K@60Hz, HDCP 2.3) |
| LCD panel | MIPI DSI 4-lane + touch panel (TP) |
| Camera | MIPI CSI DPHY: 4-lane ×1 or 2-lane ×2 |
Networking
| Item | Specification |
|---|---|
| Ethernet | 1× Gigabit RJ45, PoE PD supported (IEEE 802.3af/at, external PoE module required) |
| Wireless | Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2.4G/5G dual antennas) + Bluetooth |
I/O & Expansion
| Item | Specification |
|---|---|
| USB | 4× USB 3.2 HOST Type-A (5Gbps); 1× USB 3.2 OTG Type-C (5Gbps) |
| M.2 | M.2 M-Key 2280 (PCIe 2.0 ×1 lane) |
| TF card | Supported |
| GPIO | 40-pin header: 24×GPIO + debug UART (all GPIO at 3V3 level) |
| Audio | 3.5mm 4-pole jack (ES8388S codec, output + MIC input) |
| RTC | Supported, with battery holder |
| Fan | Supported, 5V PWM (1.25mm 4P: GND / 5V / FG / PWM) |
| PoE | PoE input header (2.54mm 2×2, external PoE-to-5V module required) |
Electrical & Environmental
| Item | Specification |
|---|---|
| Power | Type-C DC 5V/2A; PoE input supported (PoE-to-5V module required) |
| Power consumption | Max 7W |
| Dimensions | 100.2 × 74.2 × 23 mm |
| Operating temperature | -20°C ~ 60°C |
| Storage temperature | -20°C ~ 70°C |
| Operating humidity | 20–85% RH (non-condensing) |
| Storage humidity | 5–90% RH (non-condensing) |
| LEDs | Power LED (red + green); sleep/run status LED |
| Buttons | Power / Recovery / Maskrom |

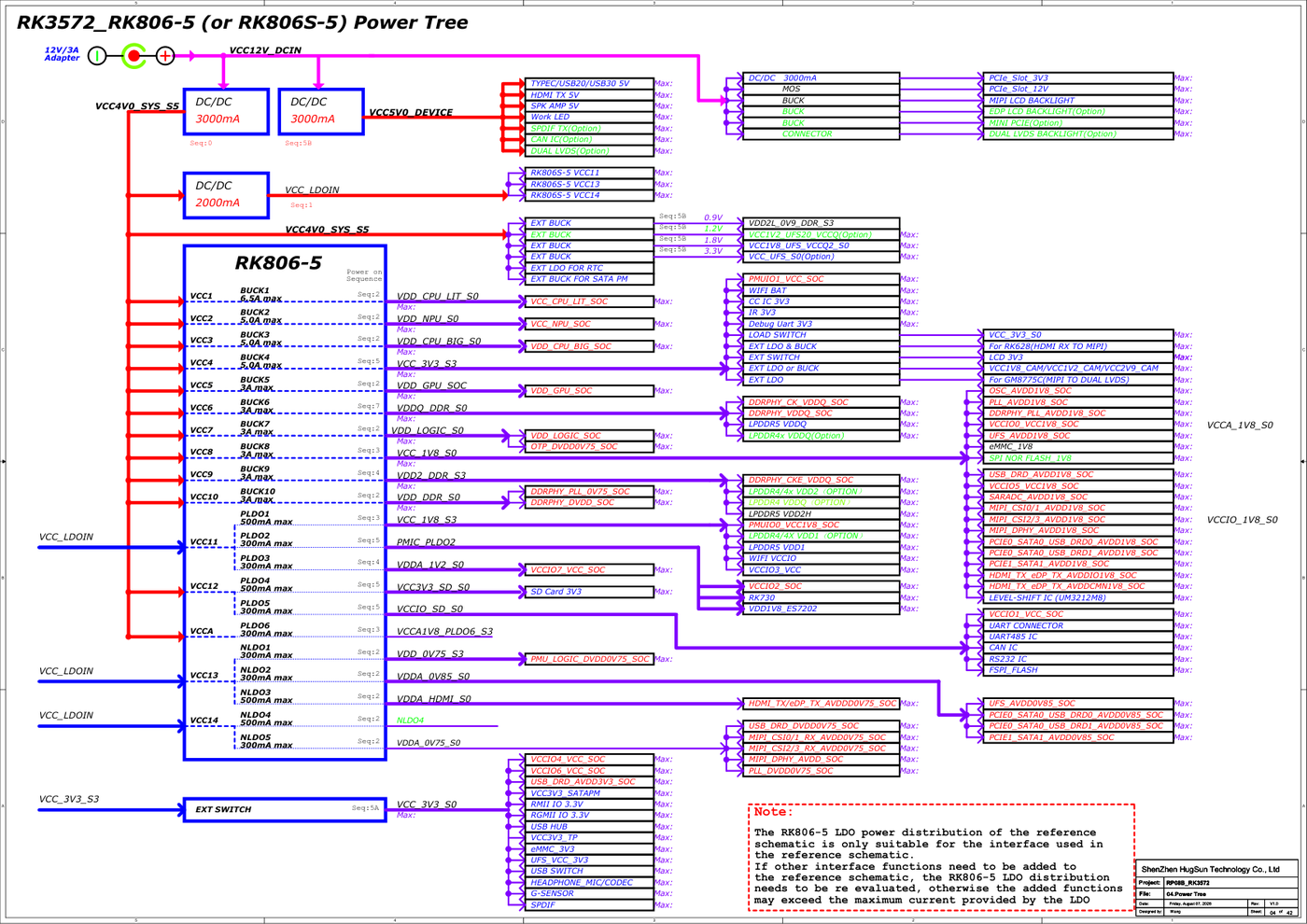

Power Tree
