| Item | Content |
|---|---|
| Product No. | RUPA Claw-RC1 |
| Version | V1.0 |
| Release Date | 2026-03-19 |
| Effective Date | 2026-03-19 |
| Document Status | Under Revision |
| Prepared by | Wang Zhihai |
| Reviewed by | — |
| Confidentiality Level | Public |
| Version | Release Date | Update Record |
|---|---|---|
| V1.0 | 2026-03-19 | Initial release |
1. Product Introduction
Built on Rockchip flagship RK3588, this device runs Armbian Ubuntu 26.02 and is deeply optimized for OpenClaw AI agents. It supports one-click installation and rapid deployment.
The streamlined Armbian system ensures long-term stable operation, suitable for both development and production scenarios.
2. Specifications
Product Specifications
| Item | Description |
|---|---|
| CPU | RK3588 Octa-core (Cortex-A76 + Cortex-A55), up to 2.4GHz |
| GPU | Mali-G610; supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2. Built-in high-performance 2D acceleration hardware |
| DDR | LPDDR4X, optional: 4GB / 8GB / 16GB |
| NPU | 6.0 TOPS |
| OS | Armbian Ubuntu 26.0.2 |
| Onboard Storage | Supports eMMC 5.1 & SDIO 3.0, optional: 32GB / 64GB / 128GB |
| Display Output | 2 × HDMI 2.1, max 4K@60Hz, HDCP 2.3 1 × 4-Lane Type-C (DP 1.4a), max 4K@60Hz, HDCP 2.3 |
| Ethernet | 1 × Gigabit Ethernet |
| Wi-Fi | Wi-Fi 6 MIMO, IEEE 802.11a/b/g/n/ac/ax |
| RTC | RTC supported, compatible with CR1220 battery |
| USB | 1 × USB3.1 HOST Type-A (5Gbps) 1 × USB3.1 OTG Type-C (5Gbps) 2 × USB2.0 HOST Type-A (480Mbps) |
| Reserved Interfaces | 2 × UART TTL (3.3V level) 6 × GPIO (3.3V level) 1 × DP 1 × SATA |
| Power Supply | 12V 2A DC, 5.5×2.0mm barrel connector |
| Cooling | Passive cooling |
| Power Consumption | 10W (without external peripherals) |
| Net Weight | 251g ± 10g |
| Package Weight | 610g ± 10g |
| Operating Temperature | -20℃ ~ 45℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Operating Humidity | 20% - 85% RH (Non-condensing) |
| Storage Humidity | 5% - 90% RH (Non-condensing) |

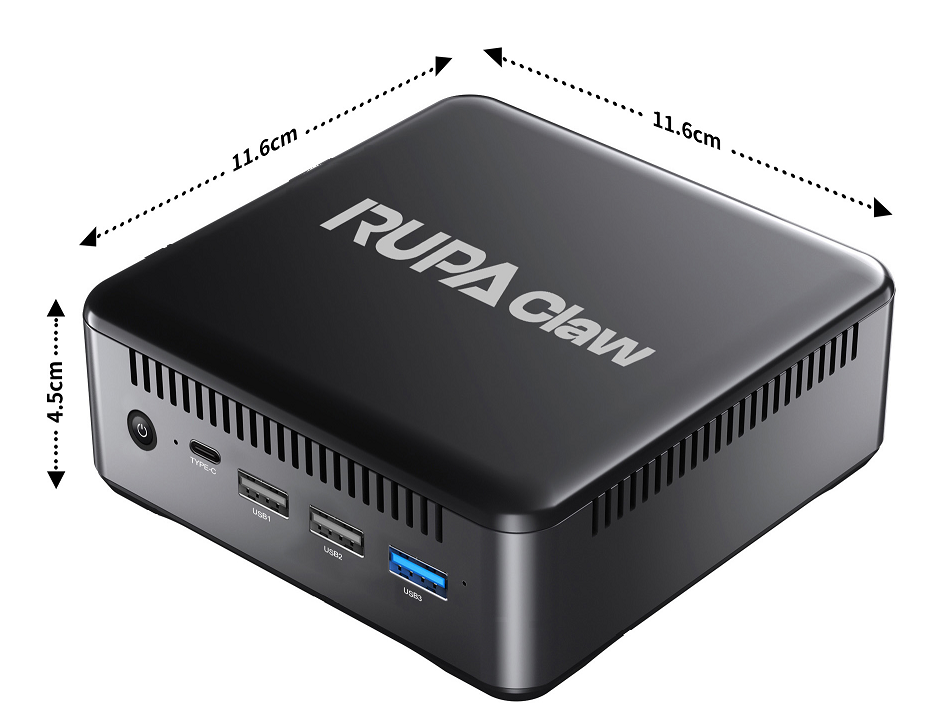

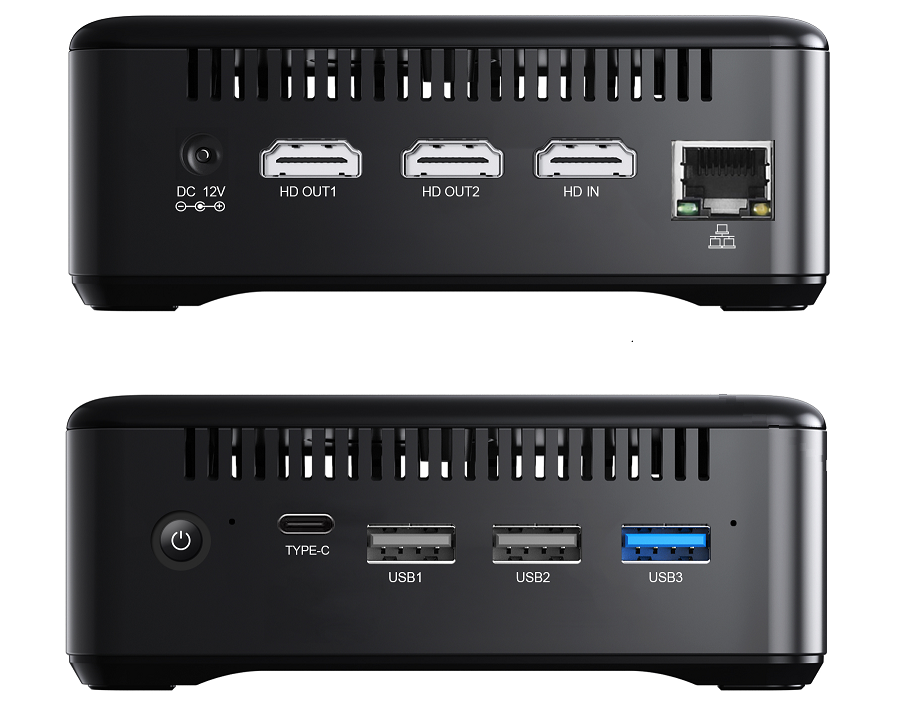

3. Product Schematic Diagram
