产品编号V01-RK3588S
版本号V1.0
发布日期2026-3-29
生效日期2026-3-29
文件状态编修
文件拟定王志海
文件审核
保密类型公开
版本发布日期升级记录
V1.02026-3-29第一次发布

一、产品介绍

RK3588S是瑞芯微高性价比旗舰芯片，采用的是8nm 生产工艺的8核CPU（4核Cortex-A76 +4核Cortex-A55）;支持8K 60HZ视频输出和解码，内部集成6.0 Tops NPU，可以满足大多数终端设备的边缘计算需求。
V01-RK3588S 采用核心板方式，将所有功能接口都外接到DDR4 SO‑DIMM上，方便客户使用和开发。为智能体设备提供高效的方案！

二、规格参数

产品规格

CPURK3588S Octo-core, Cortex-A76 and Cortex-A55
频率高达2.4GHz
GPUMali-G610 GPU，OpenGL ES 1.1/2.0/3.2，OpenCL 2.2，Vulkan 1.2
内嵌高性能2D加速硬件
DDRLPDDR4X
4G/8G/16G/可选
NPU6.0 Tops
OSAndroid /Debian /Buildroot/ Ubuntu（用户自己开发）
内置存储器支持 eMMC5.1，SDIO3.0
16GB/32GB/64G/128G（可选）
接口类型260‑Pin DDR4 SO‑DIMM
PCIEPCIE2.0 1Lane*2（与SATA、USB3.0 共用端口）
SATASATA3.0*2（与PCIE、USB3.0 共用端口）
USBOTGType-c USB3.0+USB2.0 OTG 带DP输出*1
USB HostUSB3.0 Host*1（与PCIE、SATA 共用端口 +USB2.0 Host *2
HDMIHDMI2.1 @8K*1（与EDP共用端口）
EDP4Lane*1（与HDMI共用端口）
MIPI TXD/C PHY *2
MIPI RXMIPI D/C PHY *1+MIPI DPHY 4Lane*2(可以适配2Lane*4)
SDMMCSDMMC2.0/3.0 *1
SDIOSDIO3.0*1
RGMIIRGMII*1
ADCADC*4
UartUart TTL *9+Debug*1
PWMPWM*16
I2CI2C*9
SPISPI*6
I2SI2S*4
电源4.0V 3A
整机功耗10W（MAX）
净重PCBA：16g
尺寸69.6 mm  ×  58.21mm
工作温度-20~60℃
存储温度-20~70℃
工作湿度20-85 RH （无冷凝）
存储湿度5-90 RH （无冷凝）

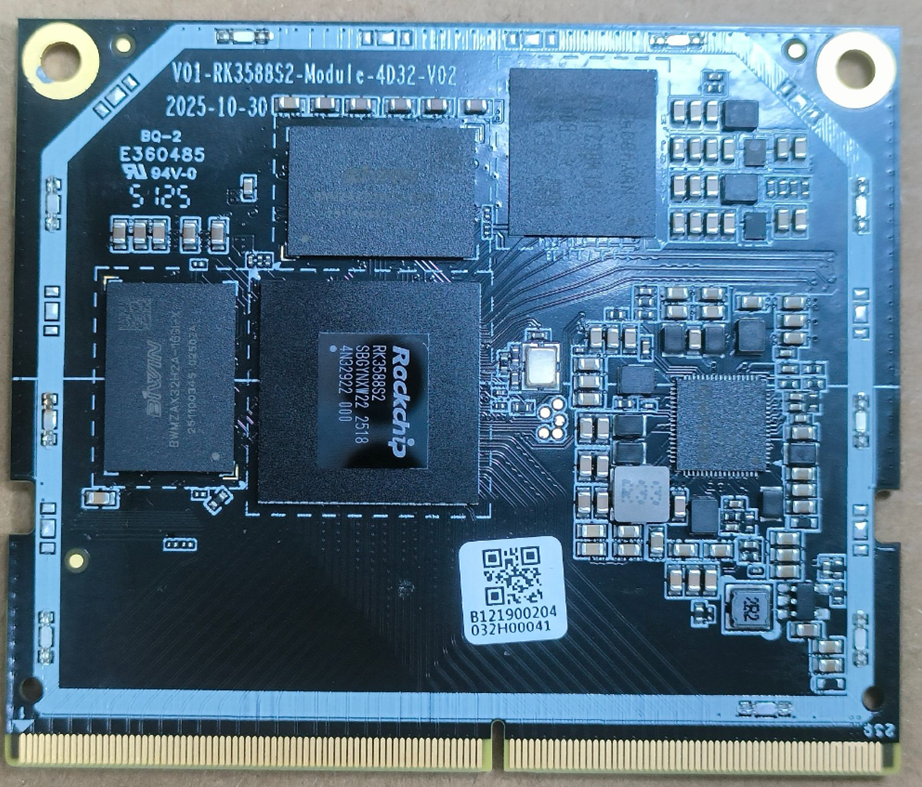

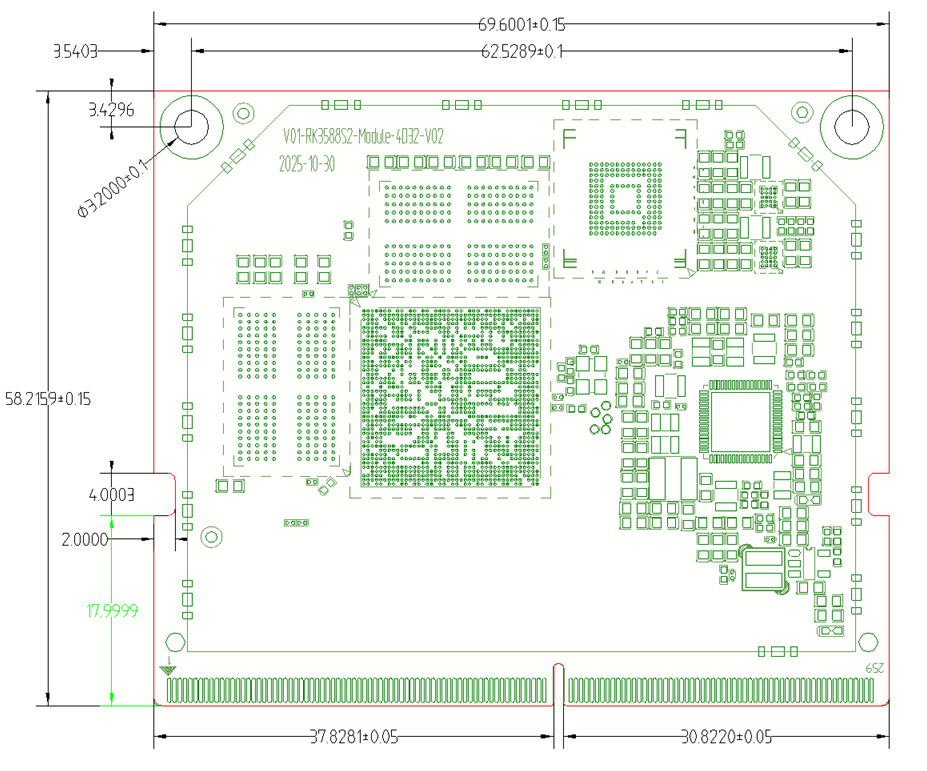

三、产品示意图



四、接口定义

顶层pin脚定义

PINPIN  功能1PIN  功能2PIN  功能3备注
1GNDGND
3HDMI0_TX_SBDNHDMI0_TX_SBDN
5HDMI0_TX_SBDPHDMI0_TX_SBDP
7GNDGND
9HDMI0_TX3NHDMI0_TX3N
11HDMI0_TX3PHDMI0_TX3P
13GNDGND
15HDMI0_TX0NHDMI0_TX0N
17HDMI0_TX0P_HDMI0_TX0P_
19GNDGND
21HDMI0_TX1NHDMI0_TX1N
23HDMI0_TX1PHDMI0_TX1P
25GNDGND
27HDMI0_TX2NHDMI0_TX2N
29HDMI0_TX2PHDMI0_TX2P
31GNDGND
33TYPEC0_SBU2TYPEC0_SBU2
35TYPEC0_SBU1TYPEC0_SBU1
37TYPEC0_SSRX1NTYPEC0_SSRX1N
39TYPEC0_SSRX1PTYPEC0_SSRX1P
41GNDGND
43TYPEC0_SSTX1PDP0_TX1P
45TYPEC0_SSTX1NDP0_TX1N
47GNDGND
49TYPEC0_SSRX2NDP0_TX2N
51TYPEC0_SSRX2PDP0_TX2P
53GNDGND
55TYPEC0_SSTX2PDP0_TX3P
57TYPEC0_SSTX2NDP0_TX3N
59GNDGND
61MIPI_DPHY1_TX_D0NMIPI_CPHY1_TX_TRIO0_A
63MIPI_DPHY1_TX_D0PMIPI_CPHY1_TX_TRIO0_B
65GNDGND
67MIPI_DPHY1_TX_D1NMIPI_CPHY1_TX_TRIO0_C
69MIPI_DPHY1_TX_D1PMIPI_CPHY1_TX_TRIO1_A
71GNDGND
73MIPI_DPHY1_TX_CLKNMIPI_CPHY1_TX_TRIO1_B
75MIPI_DPHY1_TX_CLKPMIPI_CPHY1_TX_TRIO1_C
77GNDGND
79MIPI_DPHY1_TX_D2NMIPI_CPHY1_TX_TRIO2_A
81MIPI_DPHY1_TX_D2PMIPI_CPHY1_TX_TRIO2_B
83GNDGND
85MIPI_DPHY1_TX_D3NMIPI_CPHY1_TX_TRIO2_C
87MIPI_DPHY1_TX_D3P
89GNDGND
91MIPI_DPHY1_RX_D0NMIPI_CPHY1_RX_TRIO0_A
93MIPI_DPHY1_RX_D0PMIPI_CPHY1_RX_TRIO0_B
95MIPI_DPHY1_RX_D1NMIPI_CPHY1_RX_TRIO0_C
97MIPI_DPHY1_RX_D1PMIPI_CPHY1_RX_TRIO1_A
99GNDGND
101MIPI_DPHY1_RX_CLKNMIPI_CPHY1_RX_TRIO1_B
103MIPI_DPHY1_RX_CLKPMIPI_CPHY1_RX_TRIO1_C
105GNDGND
107MIPI_DPHY1_RX_D2NMIPI_CPHY1_RX_TRIO2_A
109MIPI_DPHY1_RX_D2PMIPI_CPHY1_RX_TRIO2_B
111MIPI_DPHY1_RX_D3NMIPI_CPHY1_RX_TRIO2_C
113MIPI_DPHY1_RX_D3P
115GNDGND
117MIPI_DPHY0_TX_D0NMIPI_CPHY0_TX_TRIO0_A
119MIPI_DPHY0_TX_D0PMIPI_CPHY0_TX_TRIO0_B
121GNDGND
123MIPI_DPHY0_TX_D1NMIPI_CPHY0_TX_TRIO0_C
125MIPI_DPHY0_TX_D1PMIPI_CPHY0_TX_TRIO1_A
127GNDGND
129MIPI_DPHY0_TX_CLKNMIPI_CPHY0_TX_TRIO1_B
131MIPI_DPHY0_TX_CLKPMIPI_CPHY0_TX_TRIO1_C
133GNDGND
135MIPI_DPHY0_TX_D2NMIPI_CPHY0_TX_TRIO2_A
137MIPI_DPHY0_TX_D2PMIPI_CPHY0_TX_TRIO2_B
139GNDGND
141MIPI_DPHY0_TX_D3NMIPI_CPHY0_TX_TRIO2_C
143MIPI_DPHY0_TX_D3P
145GNDGND
147MIPI_CSI0_RX_D0N
149MIPI_CSI0_RX_D0P
151MIPI_CSI0_RX_D1N
153MIPI_CSI0_RX_D1P
155GNDGND
157MIPI_CSI0_RX_CLK0N
159MIPI_CSI0_RX_CLK0P
161GNDGND
163MIPI_CSI0_RX_D2N
165MIPI_CSI0_RX_D2P
167MIPI_CSI0_RX_D3N
169MIPI_CSI0_RX_D3P
171GNDGND
173MIPI_CSI0_RX_CLK1P
175MIPI_CSI0_RX_CLK1N
177GNDGND
179MIPI_CSI1_RX_CLK1P
181MIPI_CSI1_RX_CLK1N
183GNDGND
185MIPI_CSI1_RX_D2N
187MIPI_CSI1_RX_D2P
189MIPI_CSI1_RX_D3P
191MIPI_CSI1_RX_D3N
193GNDGND
195MIPI_CSI1_RX_CLK0P
197MIPI_CSI1_RX_CLK0N
199GNDGND
201MIPI_CSI1_RX_D0N
203MIPI_CSI1_RX_D0P
205MIPI_CSI1_RX_D1N
207MIPI_CSI1_RX_D1P
209GNDGND
211PCIE20_0_REFCLKP
213PCIE20_0_REFCLKN
215GNDGND
217PCIE20_0_RXNSATA30_0_RXN
219PCIE20_0_RXPSATA30_0_RXP
221GNDGND
223PCIE20_0_TXNSATA30_0_TXN
225PCIE20_0_TXPSATA30_0_TXP
227GNDGND
229PCIE20_2_REFCLKN
231PCIE20_2_REFCLKP
233GND
235PCIE20_2_TXPUSB30_2_SSTXPSATA30_2_TXP
237PCIE20_2_TXNUSB30_2_SSTXNSATA30_2_TXN
239GND
241PCIE20_2_RXPUSB30_2_SSRXPSATA30_2_RXP
243PCIE20_2_RXNUSB30_2_SSRXNSATA30_2_RXN
245GNDGND
247GNDGND
249POWER4.0V 电源输入
251POWER4.0V 电源输入
253POWER4.0V 电源输入
255POWER4.0V 电源输入
257GNDGND
259GNDGND

底层pin脚定义

PINP功能1IO电压功能2功能3功能4功能5功能6功能7
2GNDGND
4SDMMC_CLK1.8V/3.3VUART5_TX_M0MCU_JTAG_TMS_M0PDM1_CLK0_M0CAN0_RX_M1TEST_CLKOUT_M0GPIO4_D5_d
6SDMMC_CMD1.8V/3.3VUART5_RX_M0MCU_JTAG_TCK_M0PDM1_CLK1_M0CAN0_TX_M1PWM7_IR_M1GPIO4_D4_u
8SDMMC_D01.8V/3.3VUART2_TX_M1JTAG_TCK_M1PDM1_SDI3_M0I2C3_SCL_M4PWM8_M1GPIO4_D0_u
10SDMMC_D11.8V/3.3VUART2_RX_M1JTAG_TMS_M1PDM1_SDI2_M0I2C3_SDA_M4PWM9_M1GPIO4_D1_u
12SDMMC_D21.8V/3.3VUART5_CTSN_M0JTAG_TCK_M0PDM1_SDI1_M0I2C8_SCL_M0GPIO4_D2_u
14SDMMC_D31.8V/3.3VUART5_RTSN_M0JTAG_TMS_M0PDM1_SDI0_M0I2C8_SDA_M0PWM10_M1GPIO4_D3_u
16GND
18USB 2.0 Host0 DP
20USB 2.0 Host0 DM
22USB 2.0 Host1 DP
24USB 2.0 Host1 DM
26GND
28TYPEC0_OTG_DP
30TYPEC0_OTG_DM
32GND
34ADC_VIN0_BOOTMaskrom
36RECOVERYSARADC_VIN1_KEY
38SARADC_VIN2
40SARADC_VIN3
42PWRON_LPWRON_L
44VCC_3V3_S03.3V电源输出
46VCCIO6VCCIO6 电源输入
48VCC1V8_PMU_DDR_S31.8V电源输出
50GND
52GPIO4_A0_dVCCIO6CIF_D0BT1120_D0PCIE20X1_1_CLKREQN_M1I2S1_MCLK_M0UART9_RTSN_M1SPI0_MISO_M1
54GPIO4_A1_dVCCIO6CIF_D1BT1120_D1PCIE20X1_1_WAKEN_M1I2S1_SCLK_M0UART9_CTSN_M1SPI0_MOSI_M1
56GPIO4_A2_dVCCIO6CIF_D2BT1120_D2PCIE20X1_1_PERSTN_M1I2S1_LRCK_M0SPI0_CLK_M1
58GPIO4_A3_dVCCIO6CIF_D3BT1120_D3UART0_TX_M2
60GPIO4_A4_dVCCIO6CIF_D4BT1120_D4I2C3_SCL_M2UART0_RX_M2SPI2_MISO_M1
62GPIO4_A5_dVCCIO6CIF_D5BT1120_D5I2S1_SDI0_M0I2C3_SDA_M2UART3_TX_M2SPI2_MOSI_M1
64GPIO4_A6_dVCCIO6CIF_D6BT1120_D6I2S1_SDI1_M0I2C5_SCL_M2UART3_RX_M2SPI2_CLK_M1
66GPIO4_A7_dVCCIO6CIF_D7BT1120_D7I2S1_SDI2_M0I2C5_SDA_M2SPI2_CS0_M1
68GPIO4_B0_dVCCIO6CIF_CLKINBT1120_CLKOUTI2S1_SDI3_M0I2C6_SDA_M3UART8_TX_M0SPI2_CS1_M1
70GPIO4_B1_uVCCIO6MIPI_CAMERA0_CLK_M0I2S1_SDO0_M0I2C6_SCL_M3UART8_RX_M0SPI0_CS1_M1SPDIF1_TX_M1
72GPIO4_B2_uVCCIO6CIF_HREFBT1120_D8PCIE20X1_1_BUTTON_RSTNI2S1_SDO1_M0I2C7_SCL_M3UART8_RTSN_M0
74GPIO4_B3_uVCCIO6CIF_VSYNCBT1120_D9PCIE20X1_2_BUTTON_RSTNI2S1_SDO2_M0I2C7_SDA_M3UART8_CTSN_M0
76GPIO4_B4_uVCCIO6CIF_CLKOUTBT1120_D10SPDIF0_TX_M1I2S1_SDO3_M0DP0_HPDIN_M0UART9_TX_M1
78GPIO4_B5_uVCCIO6BT1120_D11SPI3_MISO_M1PWM12_M1UART9_RX_M1
80GPIO4_B6_uVCCIO6BT1120_D12SPI3_MOSI_M1PWM13_M1I2C5_SCL_M1SATA0_ACT_LED_M0
82GPIO4_B7_uVCCIO6BT1120_D13SPI3_CLK_M1HDMI_TX0_SCL_M0I2C5_SDA_M1
84GPIO4_C0_uVCCIO6BT1120_D14SPI3_CS0_M1HDMI_TX0_SDA_M0I2C8_SCL_M3
86GPIO4_C1_dVCCIO6BT1120_D15SPI3_CS1_M1HDMI_TX0_CEC_M0I2C8_SDA_M3PWM6_M1SPDIF1_TX_M2
88GNDGND
90ADC_DET1.8VGPIO3_D1_dCIF_D13SPI0_MISO_M3UART4_TX_M1PCIE20X1_2_PERSTN_M0
92ACC_Det1.8VGPIO3_C7_uCIF_D11SPI3_MOSI_M3I2C5_SCL_M0PCIE20X1_2_CLKREQN_M0
94MFI_RST1.8VGPIO3_C6_uCIF_D10SPI3_MISO_M3
96USB_SW1.8VGPIO3_D0_uCIF_D12SPI3_CLK_M3I2C5_SDA_M0UART4_RX_M1PCIE20X1_2_WAKEN_M0
98Uart5_TX_M11.8VGPIO3_C4_uCIF_D8SPI3_CS0_M3FSPI_CS0N_M2UART5_TX_M1CAN2_RX_M0
100Uart5_RX_M11.8VGPIO3_C5_uCIF_D9SPI3_CS1_M3FSPI_CS1N_M2UART5_RX_M1CAN2_TX_M0
